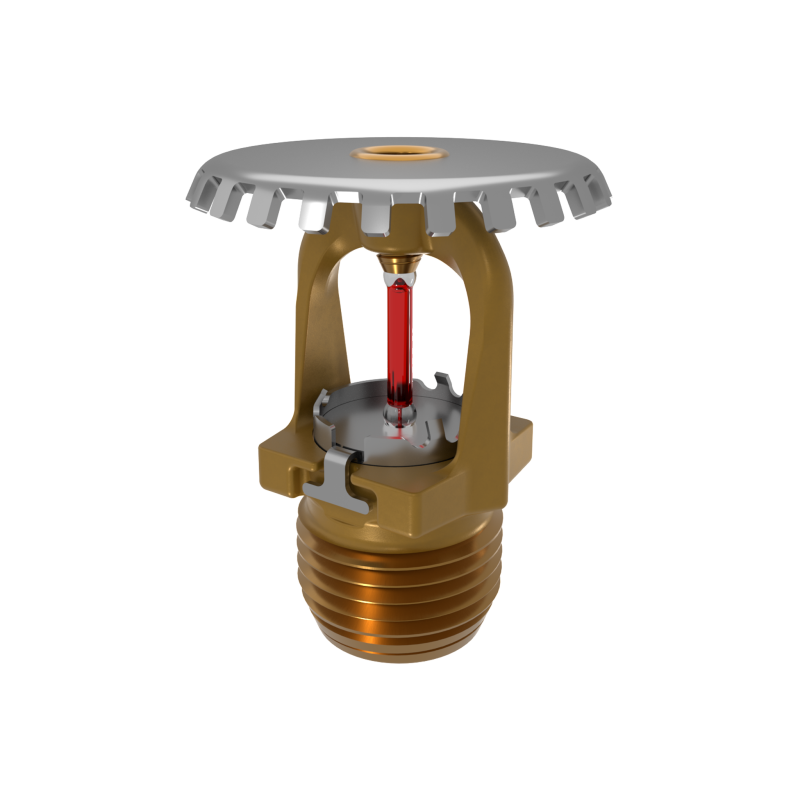

Viking XT1 VK3001 5.6K Brass Upright Fire Sprinkler (155°F, Quick Response)

Viking XT1 VK3001 Upright Quick Response Fire Sprinkler (155°F, Brass)

The Viking XT1 VK3001 5.6K Upright Fire Sprinkler delivers dependable fire protection in light and ordinary hazard occupancies. With a 155°F (68°C) temperature rating and durable brass finish, this sprinkler offers fast response activation and a long service life.

Key Features:

• Model: Viking XT1 VK3001
• Type: Upright, Quick Response
• K-Factor: 5.6 (80 metric)
• Temperature Rating: 155°F (68°C)
• Thread Size: 1/2” NPT
• Finish: Brass
• Maximum Working Pressure: 250 psi (UL)
• Listings: UL Listed, FM Approved, cULus
• Application: Light and Ordinary Hazard Areas

Product Overview

The Viking XT1 VK3001 Upright Sprinkler is designed for exposed piping installations where the sprinkler deflector is positioned above the orifice. This design ensures optimal water distribution for efficient fire suppression.

Technical Data

• Sprinkler Identification Number (SIN): VK3001
• Manufacturer Part Number: 23869AB (155°F, Brass)
• Orifice Size: 1/2” (12.7 mm)
• Deflector Material: Stainless Steel
• Frame Material: Brass
• Height: 1.94” (49.3 mm)
• Weight: 0.14 lb (0.06 kg)

Compliance

Manufactured and tested according to NFPA 13 standards for use in commercial and industrial systems. Must be installed by qualified personnel following NFPA and local code requirements.

Common Applications

• Warehouses
• Mechanical rooms
• Parking structures
• Industrial facilities
