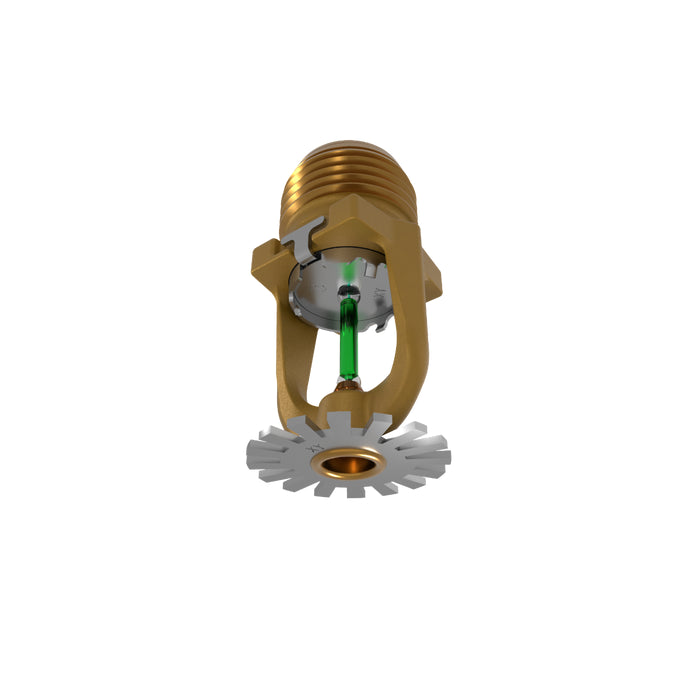

Viking VK3021 Pendent Fire Sprinkler QR 5.6K Brass 200F

Viking VK3021 Pendent Fire Sprinkler QR 5.6K Brass 200F

The Viking VK3021 pendent fire sprinkler is a quick response sprinkler designed for fire protection systems operating in elevated ambient temperature environments. This model features a 5.6K K factor, standard brass finish, and a 200F temperature rating for reliable performance.

The pendent configuration is ideal for finished ceilings in offices, retail spaces, hotels, and other commercial interiors where fast response and dependable coverage are required.

Key Features

• Quick response pendent fire sprinkler
• K factor 5.6
• 200F temperature rating
• Standard brass finish
• Pendent ceiling installation
• Fast thermal response glass bulb design
• UL listed and FM approved

Specifications

• Manufacturer: Viking
• Model: VK3021
• Response Type: Quick Response
• Orientation: Pendent
• K Factor: 5.6
• Temperature Rating: 200F
• Finish: Standard Brass
• Thread Size: 1/2 inch NPT
• Maximum Working Pressure: 250 psi
• Listings: UL Listed, FM Approved

Typical Applications

• Commercial interiors
• Retail and office buildings
• Hotels and hospitality
• Light and ordinary hazard occupancies
• Areas with elevated ambient ceiling temperatures

Installation must comply with Viking installation instructions, NFPA standards, and all applicable local fire protection codes.
