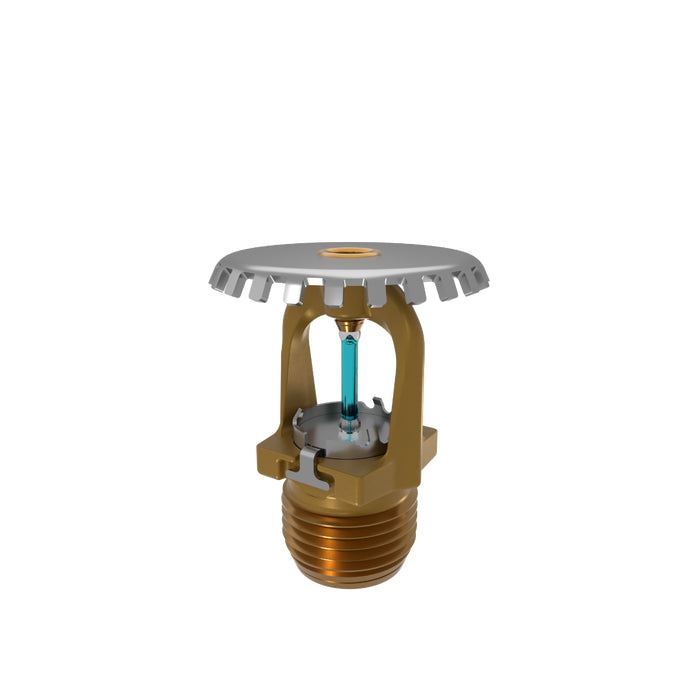

Viking VK3001 Upright Fire Sprinkler QR 5.6K Brass 286F

Viking VK3001 Upright Fire Sprinkler QR 5.6K Brass 286F

The Viking VK3001 upright fire sprinkler is a quick response sprinkler designed for commercial and industrial fire protection systems requiring high temperature ratings. This model features a 5.6K K factor, durable brass construction, and a 286F temperature rating for use in high ambient temperature environments.

The quick response design enables faster thermal activation, making the VK3001 ideal for applications where rapid fire suppression is critical. The upright orientation is commonly used for exposed piping installations in warehouses, mechanical rooms, and industrial facilities.

Key Features

• Quick response upright fire sprinkler
• K factor 5.6
• 286F temperature rating
• Brass frame construction
• Upright orientation for exposed piping systems
• Fast thermal response design
• UL listed and FM approved

Specifications

• Manufacturer: Viking
• Model: VK3001
• Response Type: Quick Response
• Orientation: Upright
• K Factor: 5.6
• Temperature Rating: 286F
• Finish: Brass
• Thread Size: 1/2 inch NPT
• Maximum Working Pressure: 250 psi
• Listings: UL Listed, FM Approved

Typical Applications

• Commercial buildings
• Mechanical rooms
• Warehouses
• Industrial facilities
• High temperature environments

Install in accordance with manufacturer instructions and applicable fire protection codes. Always verify system design requirements and local regulations prior to installation.
