Viking VK3001 Upright Fire Sprinkler QR 5.6K Brass 200F

Viking VK3001 Upright Fire Sprinkler QR 5.6K Brass 200F

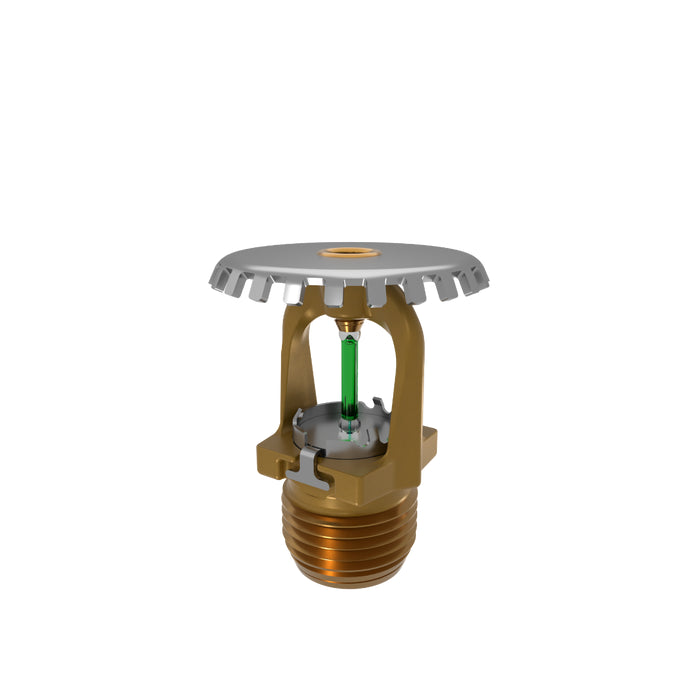

The Viking VK3001 upright fire sprinkler is a quick response sprinkler designed for commercial and industrial fire protection systems. This model features a 5.6K K factor, durable brass construction, and a 200F temperature rating for areas with elevated ambient temperatures.

The quick response design allows faster thermal activation, making the VK3001 well suited for applications where rapid fire suppression is required. The upright orientation is commonly used for exposed piping installations in warehouses, mechanical rooms, and industrial facilities.

Key Features

• Quick response upright fire sprinkler
• K factor 5.6
• 200F temperature rating
• Brass frame construction
• Upright orientation for exposed piping systems
• Fast thermal response design
• UL listed and FM approved

Specifications

• Manufacturer: Viking
• Model: VK3001
• Response Type: Quick Response
• Orientation: Upright
• K Factor: 5.6
• Temperature Rating: 200F
• Finish: Brass
• Thread Size: 1/2 inch NPT
• Maximum Working Pressure: 250 psi
• Listings: UL Listed, FM Approved

Typical Applications

• Commercial buildings
• Mechanical rooms
• Warehouses
• Industrial facilities
• Areas requiring quick response fire protection

Install in accordance with manufacturer instructions and applicable fire protection codes. Always verify system design requirements and local regulations prior to installation.
