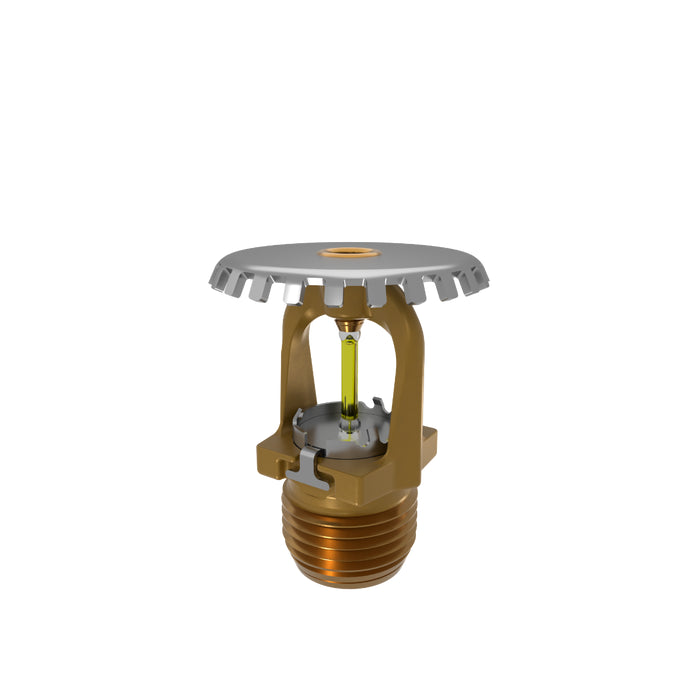

Viking VK3001 Upright Fire Sprinkler QR 5.6K Brass 175F

Viking VK3001 Upright Fire Sprinkler QR 5.6K Brass 175F

The Viking VK3001 upright fire sprinkler is a quick response sprinkler designed for commercial and light industrial fire protection systems. This model features a 5.6K K factor, durable brass construction, and a 175F temperature rating for areas with moderately elevated ambient temperatures.

The quick response design allows for faster thermal activation, making the VK3001 well suited for applications where rapid fire suppression is required. The upright orientation is commonly used for exposed piping installations in commercial and industrial environments.

Key Features

• Quick response upright fire sprinkler
• K factor 5.6
• 175F temperature rating
• Brass frame construction
• Upright orientation for exposed piping systems
• Fast thermal response design
• UL listed and FM approved

Specifications

• Manufacturer: Viking
• Model: VK3001
• Response Type: Quick Response
• Orientation: Upright
• K Factor: 5.6
• Temperature Rating: 175F
• Finish: Brass
• Thread Size: 1/2 inch NPT
• Maximum Working Pressure: 250 psi
• Listings: UL Listed, FM Approved

Typical Applications

• Commercial buildings
• Mechanical rooms
• Warehouses
• Industrial facilities
• Areas requiring quick response fire protection

Install in accordance with manufacturer instructions and applicable fire protection codes. Always verify system design requirements and local regulations prior to installation.
