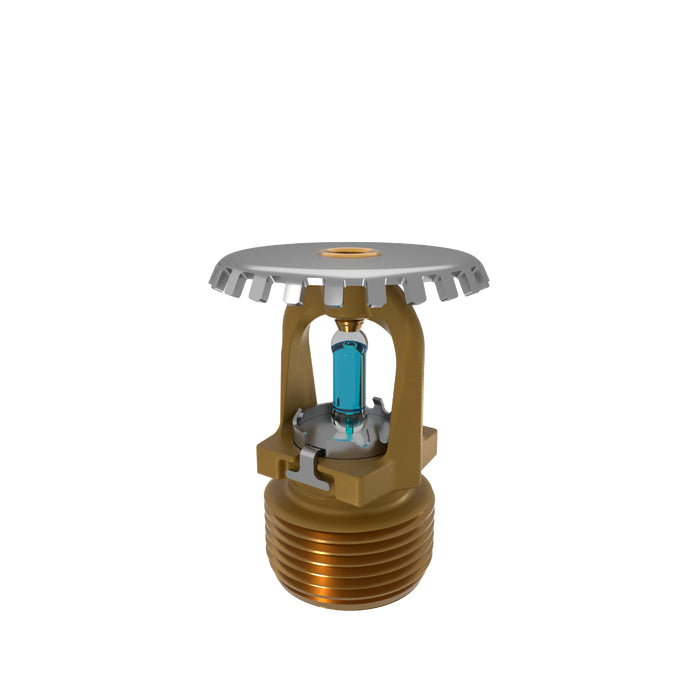

Viking VK2001 Upright Fire Sprinkler SR 8.0K Brass 286F

Viking VK2001 Upright Fire Sprinkler SR 8.0K Brass 286F

The Viking VK2001 upright fire sprinkler is a standard response sprinkler designed for commercial and industrial fire protection systems requiring higher temperature ratings. This model features an 8.0K K factor, brass construction, and a 286F temperature rating for use in high ambient temperature environments.

The upright orientation is commonly used in exposed piping installations such as mechanical rooms, warehouses, and industrial facilities. With a higher flow capacity and elevated temperature rating, the VK2001 is well suited for demanding fire protection applications.

Key Features

• Standard response upright fire sprinkler
• K factor 8.0
• 286F temperature rating
• Brass frame construction
• Upright orientation for exposed piping systems
• Designed for high temperature environments
• UL listed and FM approved

Specifications

• Manufacturer: Viking
• Model: VK2001
• Response Type: Standard Response
• Orientation: Upright
• K Factor: 8.0
• Temperature Rating: 286F
• Finish: Brass
• Thread Size: 1/2 inch NPT
• Maximum Working Pressure: 250 psi
• Listings: UL Listed, FM Approved

Typical Applications

• Mechanical rooms
• Warehouses
• Industrial facilities
• High temperature environments
• Commercial buildings

Install in accordance with manufacturer instructions and applicable fire protection codes. Always verify system design requirements and local code compliance prior to installation.
