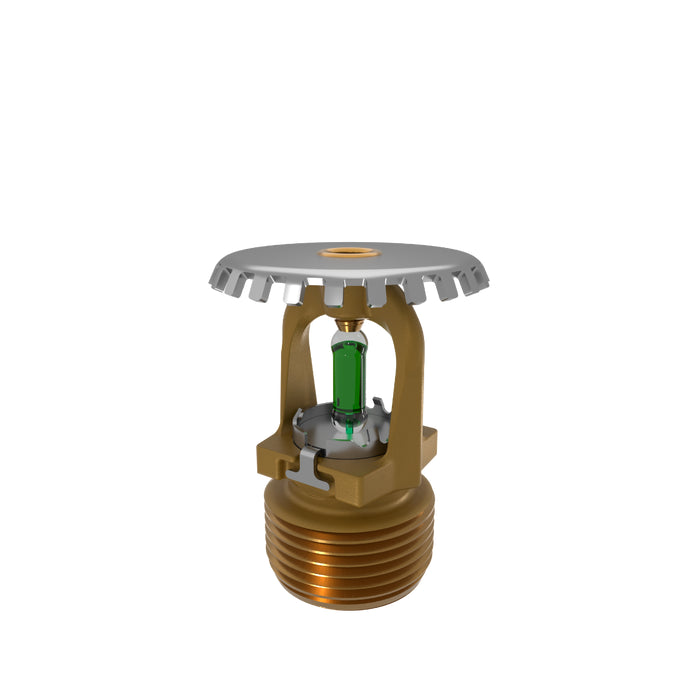

Viking VK2001 Upright Fire Sprinkler SR 8.0K Brass 200F

Viking VK2001 Upright Fire Sprinkler SR 8.0K Brass 200F

The Viking VK2001 upright fire sprinkler is a standard response sprinkler designed for commercial and industrial fire protection systems. This model features an 8.0K K factor, brass construction, and a 200F temperature rating for applications with elevated ambient temperatures.

The upright orientation is ideal for exposed piping installations commonly found in warehouses, mechanical rooms, and industrial facilities. With its higher flow capacity, the VK2001 provides reliable and effective fire suppression performance.

Key Features

• Standard response upright fire sprinkler
• K factor 8.0
• 200F temperature rating
• Brass frame construction
• Upright orientation for exposed piping systems
• High flow capacity design
• UL listed and FM approved

Specifications

• Manufacturer: Viking
• Model: VK2001
• Response Type: Standard Response
• Orientation: Upright
• K Factor: 8.0
• Temperature Rating: 200F
• Finish: Brass
• Thread Size: 1/2 inch NPT
• Maximum Working Pressure: 250 psi
• Listings: UL Listed, FM Approved

Typical Applications

• Warehouses
• Mechanical rooms
• Industrial facilities
• Commercial buildings
• Exposed piping systems

Install in accordance with manufacturer instructions and applicable fire protection codes. Always verify compatibility with system design requirements and local regulations before installation.
