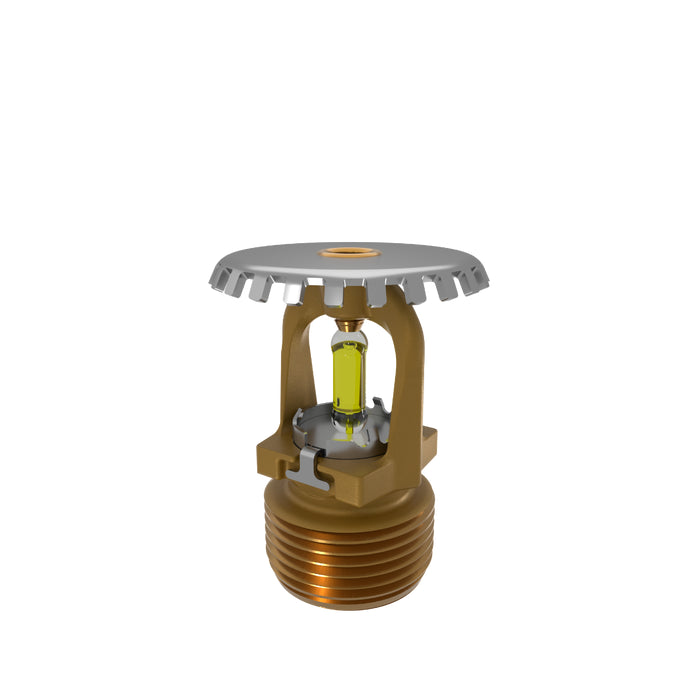

Viking VK2001 Upright Fire Sprinkler SR 8.0K Brass 175F

Viking VK2001 Upright Fire Sprinkler SR 8.0K Brass 175F

The Viking VK2001 upright fire sprinkler is a standard response sprinkler designed for commercial and industrial fire protection systems. This model features an 8.0K K factor, durable brass construction, and a 175F temperature rating for areas with moderately elevated ambient temperatures.

The upright orientation is ideal for exposed piping installations commonly found in warehouses, mechanical rooms, and industrial facilities. With its higher flow capacity, the VK2001 provides reliable fire suppression performance when installed in accordance with applicable fire protection codes.

Key Features

• Standard response upright fire sprinkler
• K factor 8.0
• 175F temperature rating
• Brass frame construction
• Upright orientation for exposed piping systems
• High flow capacity design
• UL listed and FM approved

Specifications

• Manufacturer: Viking
• Model: VK2001
• Response Type: Standard Response
• Orientation: Upright
• K Factor: 8.0
• Temperature Rating: 175F
• Finish: Brass
• Thread Size: 3/4 inch NPT
• Maximum Working Pressure: 250 psi
• Listings: UL Listed, FM Approved

Typical Applications

• Warehouses
• Mechanical rooms
• Industrial facilities
• Commercial buildings
• Areas with elevated ambient temperatures

Install in accordance with manufacturer instructions and applicable fire protection codes. Always verify system design requirements and local regulations prior to installation.
