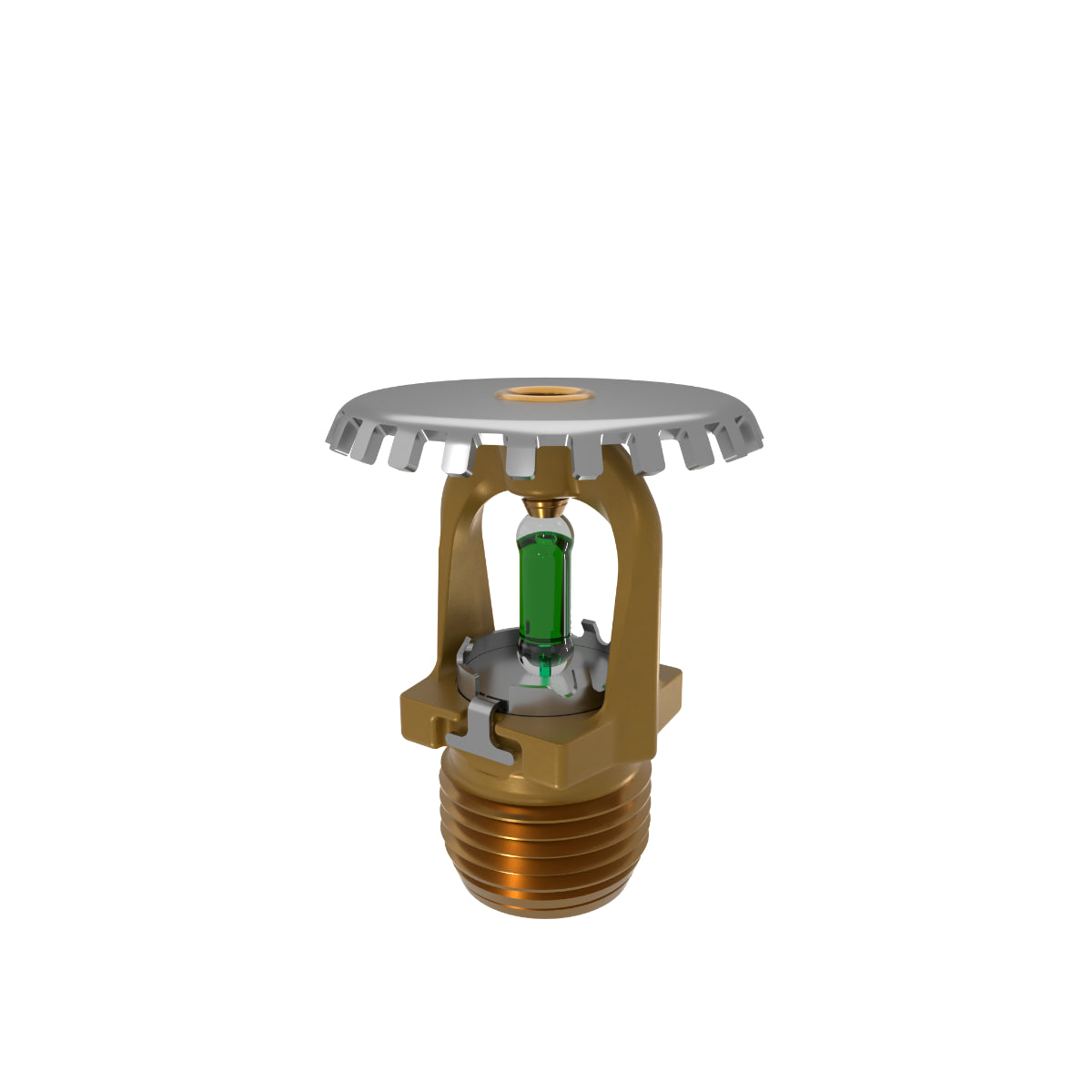

Viking VK1001 Upright Fire Sprinkler SR 5.6K Brass 200F

Viking VK1001 Upright Fire Sprinkler SR 5.6K Brass 200F

The Viking VK1001 upright fire sprinkler is a standard response sprinkler designed for commercial and industrial fire protection systems. This model features a 5.6K K factor, brass finish, and a 200F temperature rating for applications where higher ambient temperatures are present.

The upright orientation is commonly used for exposed piping installations such as warehouses, mechanical rooms, parking structures, and industrial facilities. Viking sprinklers are built for dependable performance when installed and maintained in accordance with applicable codes and manufacturer instructions.

Key Features

• Standard response upright fire sprinkler
• K factor 5.6
• 200F temperature rating
• Brass finish
• Upright orientation for exposed piping systems
• UL listed and FM approved

Specifications

• Manufacturer: Viking
• Model: VK1001
• Response Type: Standard Response
• Orientation: Upright
• K Factor: 5.6
• Temperature Rating: 200F
• Finish: Brass
• Thread Size: 1/2 inch NPT
• Maximum Working Pressure: 250 psi
• Listings: UL Listed, FM Approved

Typical Applications

• Warehouses
• Mechanical rooms
• Parking structures
• Industrial facilities
• Commercial buildings

Install in accordance with manufacturer instructions and applicable fire protection codes. Always confirm compatibility with your system design and local requirements before purchase and installation.
