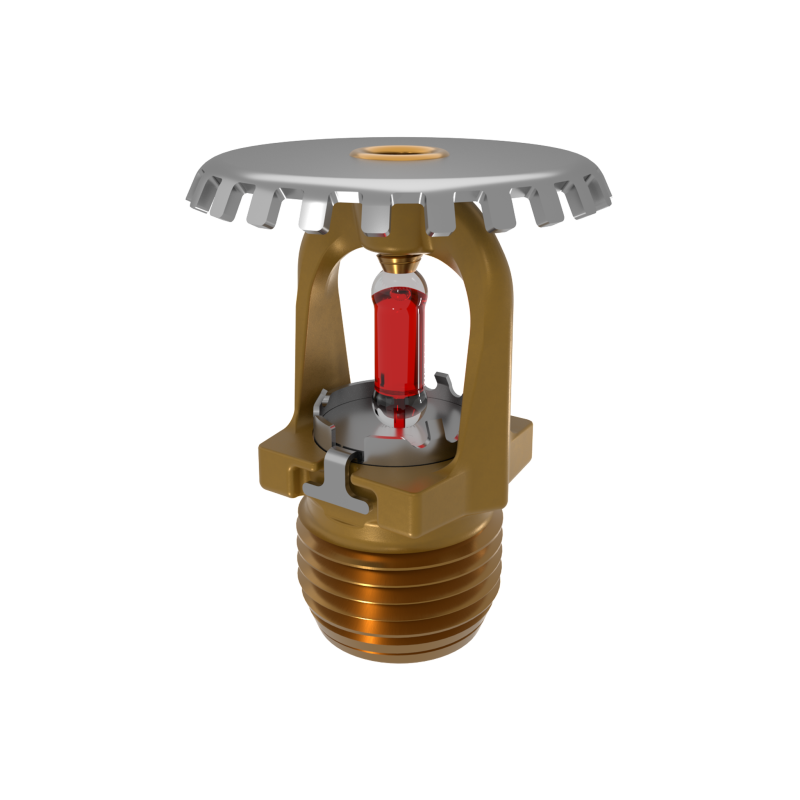

Viking VK1001 Upright Fire Sprinkler SR 5.6K Brass 155F

Viking VK1001 Upright Fire Sprinkler SR 5.6K Brass 155F

The Viking VK1001 upright fire sprinkler is a standard response sprinkler designed for dependable performance in commercial and industrial fire protection systems. With a 5.6K K factor, brass frame, and 155F temperature rating, this sprinkler delivers reliable water distribution for light and ordinary hazard occupancies.

The upright orientation makes this sprinkler ideal for exposed piping installations commonly found in warehouses, mechanical rooms, and industrial facilities. The durable brass construction provides corrosion resistance and long service life.

Key Features

• Standard response upright fire sprinkler
• K factor 5.6
• 155F temperature rating
• Brass frame with corrosion resistant components
• Upright orientation for exposed piping systems
• UL listed and FM approved

Specifications

• Manufacturer: Viking
• Model: VK1001
• Response Type: Standard Response
• Orientation: Upright
• K Factor: 5.6
• Temperature Rating: 155F
• Finish: Brass
• Thread Size: 1/2 inch NPT
• Maximum Working Pressure: 250 psi
• Listings: UL Listed, FM Approved

Typical Applications

• Warehouses
• Mechanical rooms
• Parking structures
• Industrial facilities
• Commercial buildings

This sprinkler must be installed in accordance with manufacturer instructions and applicable fire protection codes. Always verify system compatibility and local code requirements prior to installation.
