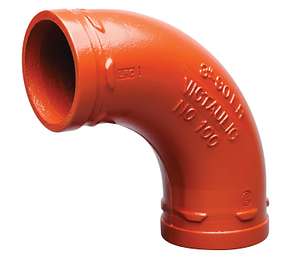

8" Grooved 90° Long Radius Elbow – Ductile Iron, UL/FM Approved

8" Grooved 90° Long Radius Elbow – Ductile Iron, UL/FM Approved

Regular price $71.68 USD
Regular price Sale price $71.68 USD
Sale Sold out

8" Grooved 90° Long Radius Elbow – Ductile Iron

The 8 inch grooved 90-degree long radius elbow is built for heavy-duty fire protection, HVAC, and mechanical piping systems requiring efficient directional flow. With its extended bend radius, this fitting reduces internal turbulence, lowers friction loss, and supports long-term system performance in high-volume pipelines.

What Is a Long Radius Elbow?

A long radius elbow provides a smoother change in direction than a short radius elbow, typically with a bend radius of 1.5 times the pipe diameter. This design reduces stress on the system, helps maintain fluid velocity, and minimizes the risk of erosion, making it ideal for large-diameter piping networks.

Key Features:

  • Nominal Size: 8 inch
  • Angle: 90-degree long radius elbow
  • Material: Rugged ductile iron for maximum strength
  • Connection: Grooved ends for fast and secure coupling installation
  • Certifications: UL Listed and FM Approved
  • Standards: Complies with AWWA C606 groove system
  • Finish: Black paint or red epoxy coating (varies by batch)

Applications:

  • Large-scale fire sprinkler and suppression systems
  • HVAC and chilled water piping
  • Industrial and municipal piping systems
  • Commercial infrastructure and pump rooms

Technical Specifications:

  • Pressure Rating: Up to 300 PSI (verify per application)
  • Bend Radius: Long radius – approx. 1.5D
  • Groove Type: Compatible with roll or cut groove couplings
  • Temperature Range: -20°F to 300°F (gasket dependent)

Installation Tip:

Use this elbow with compatible 8" grooved couplings and fittings. Always install per NFPA, AWWA C606, and local building codes for safe and compliant performance.

Need matching parts? Visit our grooved elbow collection for all sizes and styles.
