Bradford White RTG-R-199-N1 199,000 BTU 11.1 GPM Tankless Water Heater
Bradford White RTG-R-199-N1 199,000 BTU 11.1 GPM Tankless Water Heater
Couldn't load pickup availability

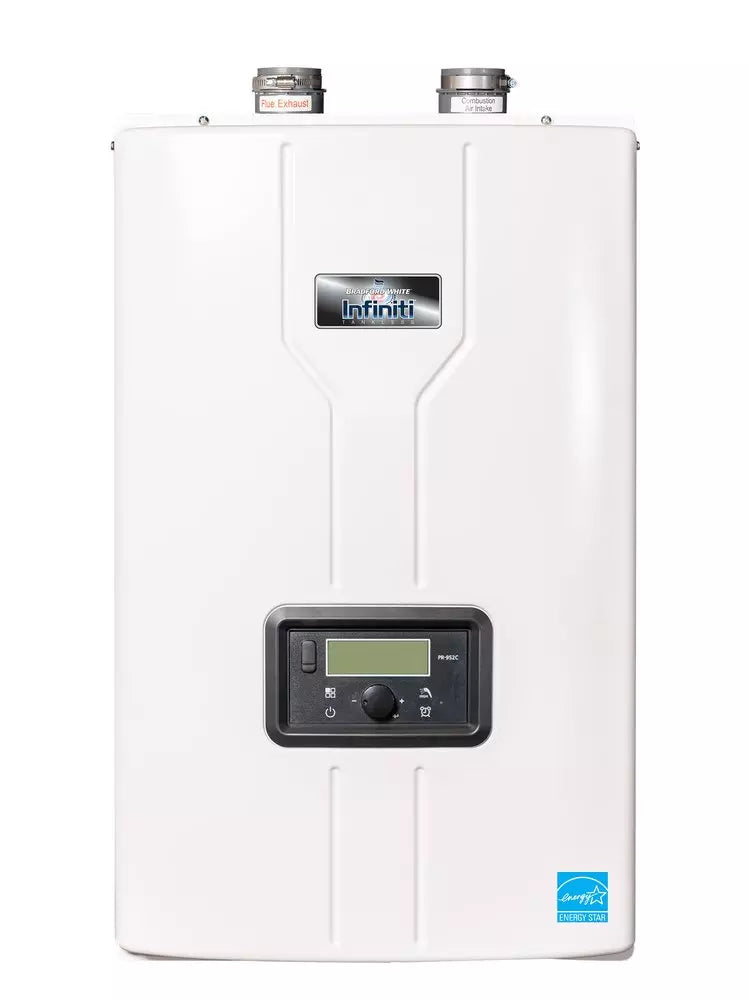

Bradford White RTG-R-199-N1 199,000 BTU Tankless Water Heater with Built-In Recirculation
The Bradford White Infiniti® GR RTG-R-199-N1 is a premium high-efficiency condensing natural gas tankless water heater delivering 199,000 BTU/h maximum input and up to 11.1 GPM. Designed for demanding residential and commercial applications, it combines high-output performance with integrated hot water recirculation.
The RTG-R-199-N1 features a built-in recirculation pump, dedicated 3/4" recirculation return, dual stainless steel heat exchangers, 15:1 turndown ratio, and 0.96 UEF.
Top Specifications
| Specification | Performance |
|---|---|
| Maximum Input | 199,000 BTU/h |
| Maximum Flow | 11.1 GPM @ 35°F Rise |
| Recirculation Pump | Built-In |
| Recirculation Return | 3/4" |
| Turndown Ratio | 15:1 |
| Minimum Input | 13,000 BTU/h |
| UEF | 0.96 |
| Heat Exchangers | Dual Stainless Steel |
| Application | Residential & Commercial |

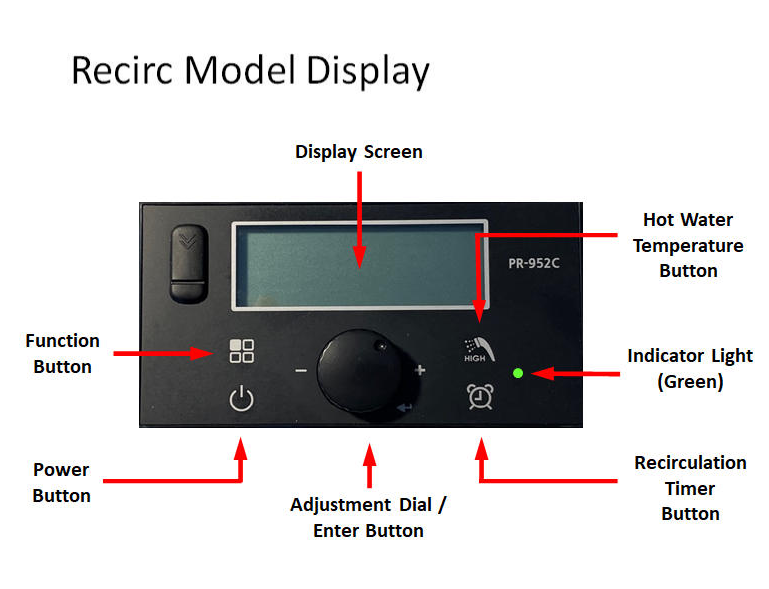

Built-In Hot Water Recirculation
The RTG-R-199-N1 comes standard with a built-in recirculation pump and dedicated 3/4" recirculation return connection. For compatible systems with a dedicated return line, integrated recirculation helps reduce hot water wait times and water waste without requiring a separate external recirculation pump.
Key Features
- 199,000 BTU/h maximum input
- Up to 11.1 GPM
- Built-in recirculation pump
- Dedicated 3/4" recirculation return
- 15:1 turndown ratio
- 0.96 UEF
- Dual stainless steel primary and secondary heat exchangers
- ENERGY STAR® certified
- Residential and commercial applications
- Indoor or outdoor installation capability
- Ultra Low NOx – 14 ng/J or 20 ppm
- Minimum flow rate of 0.5 GPM
- Gas and water leak detection
- High-altitude approved up to 10,000 ft
- 2" or 3" venting
- Common venting and cascading capability
RTG-R vs. RTG-S
Both 199 models provide the same published core heating performance. The RTG-R adds integrated recirculation.
| Feature | RTG-R-199-N1 | RTG-S-199-N1 |
|---|---|---|
| Maximum Input | 199,000 BTU/h | 199,000 BTU/h |
| Maximum Flow | 11.1 GPM | 11.1 GPM |
| Turndown | 15:1 | 15:1 |
| UEF | 0.96 | 0.96 |
| Dual Stainless Heat Exchangers | Yes | Yes |
| Built-In Recirculation | Yes | No |
| Dedicated Recirculation Return | Yes | No |
Choose the RTG-R-199-N1 for 199,000 BTU / 11.1 GPM performance with built-in recirculation. Choose the RTG-S-199-N1 when integrated recirculation isn't required.

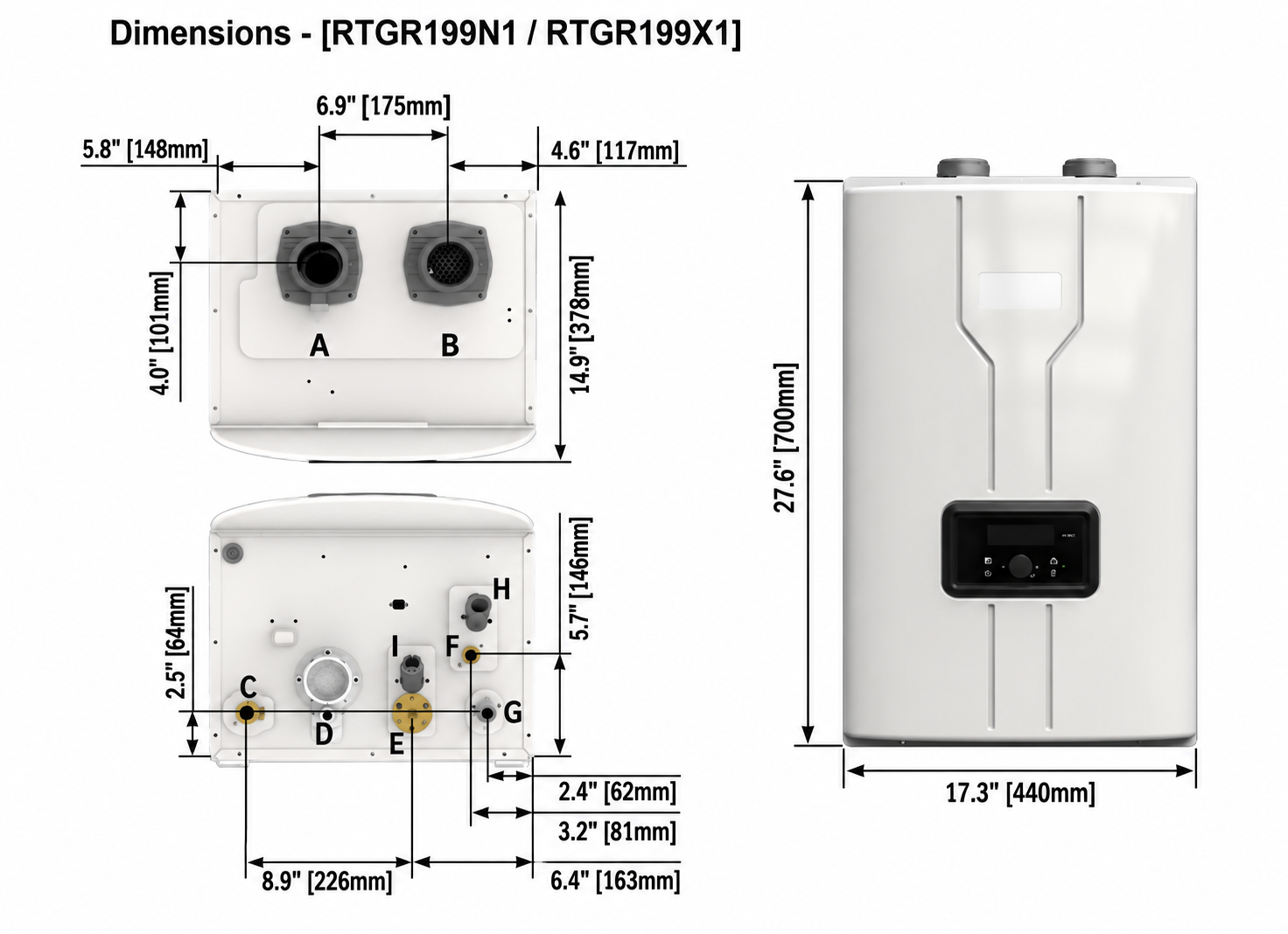

Installation & Venting
- Indoor or outdoor installation with optional outdoor vent kit
- 2" venting up to 60 equivalent ft
- 3" venting up to 150 equivalent ft
- PVC, CPVC, approved polypropylene, or stainless steel
- Compatible with 1/2" gas pipe up to 25 ft
- 3/4" NPT gas and water connections
- 3/4" NPT recirculation return
- High-altitude approved up to 10,000 ft
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bradford White |
| Series / Model | Infiniti® GR / RTG-R-199-N1 |
| Fuel Type | Natural Gas |
| Maximum Input | 199,000 BTU/h |
| Maximum Flow | 11.1 GPM @ 35°F Rise |
| Minimum Input | 13,000 BTU/h |
| Turndown Ratio | 15:1 |
| UEF | 0.96 |
| Recirculation Pump | Built-In |
| Recirculation Return | 3/4" NPT |
| Heat Exchangers | Dual Stainless Steel |
| Minimum Flow | 0.5 GPM |
| Water Pressure | 15–150 PSI |
| Venting | 2" or 3" |
| High Altitude | Up to 10,000 ft |
| Product Weight | 85 lbs |
| Power Supply | 120V / 60Hz |
| ENERGY STAR® | Yes |
Safety & Protection
Gas and water leak detection, flame rod, optical flame sensor, air pressure switch, and water, exhaust, and burner high-limit protection.
Residential & Commercial Applications
Designed for large and multi-bathroom homes, dedicated recirculation systems, high-demand residential applications, restaurants and commercial installations, tank-to-tankless conversions, and multi-unit systems.
The 199 models support commercial temperatures from 95°F to 185°F, common venting for up to eight units, and cascading capability.
