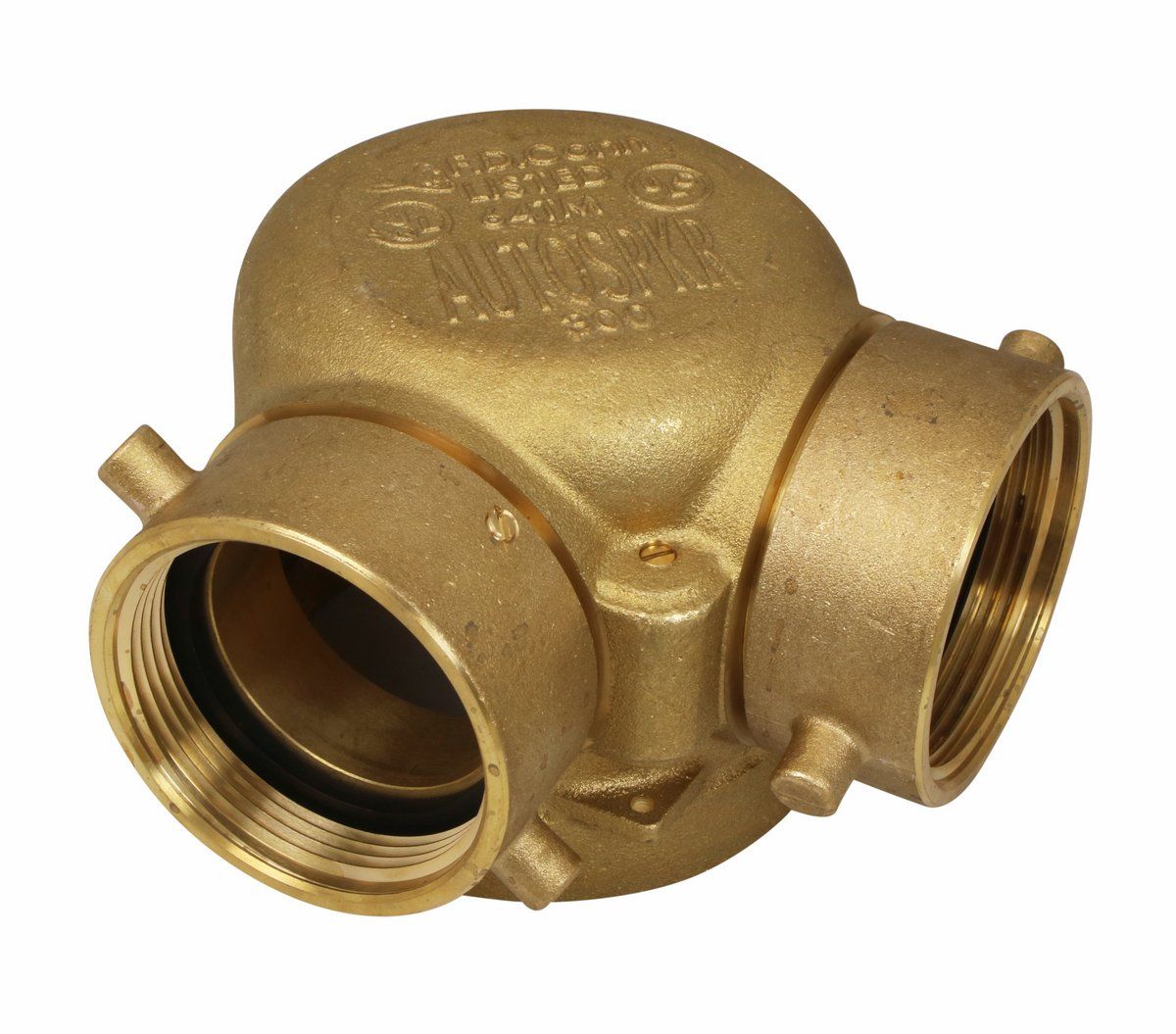

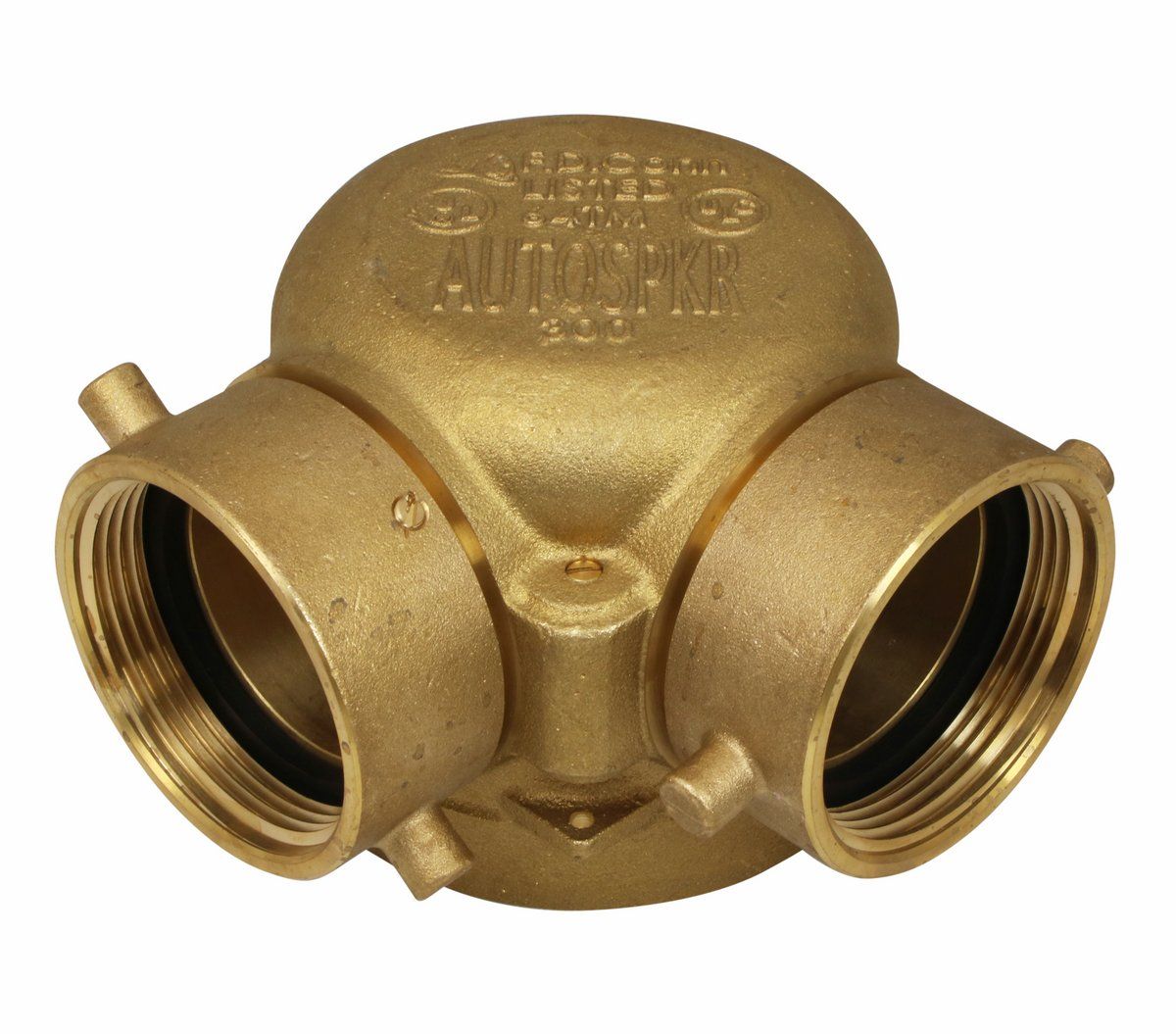

4" x 2-1/2" x 2-1/2" 90° Siamese Fire Department Connection (Brass, NST)

4" x 2-1/2" x 2-1/2" 90° Siamese Fire Department Connection (Brass, NST)

Regular price $175.13 USD
Regular price Sale price $175.13 USD
Sale Sold out

Product Overview

This 90° Siamese Fire Department Connection (FDC) features a right-angle body design that allows firefighters to connect two hose lines into a building's standpipe or sprinkler system. With dual 2-1/2" female NST swivels and a 4" male outlet, this compact and durable connection is ideal for wall-mount installations where space is limited.

Key Features:

  • Configuration: (2) 2-1/2" Female NST Inlets x 4" Male NPT Outlet
  • Angle Design: 90° body with upright inlets for compact mounting
  • Material: Heavy-duty cast brass construction
  • Inlets: Swivel adapters with pin lugs and internal clappers
  • Outlet: 4" Male NPT or flange (UL/FM models available)
  • Finish: Rough brass (optional chrome-plated models available)
  • Pressure Rating: 300 PSI working pressure
  • Includes: Optional plugs and chains for inlet protection
  • Certifications: UL Listed, FM Approved (check model)

Applications:

  • Fire Department Hose Connections to Standpipes
  • Wall-mounted risers in commercial buildings
  • Garage, warehouse, high-rise, and mixed-use installations

Specifications:

  • Body Style: 90-degree elbow with straight-facing inlets
  • Inlet Size: 2-1/2" Female NST (National Standard Thread)
  • Outlet Size: 4" Male NPT or Flanged
  • Material: Cast Brass (Chrome optional)
  • Optional Features: Caps, chains, wall plate, check valves

This 90° Siamese connection is engineered for fast and reliable hookup during fire emergencies. Its rugged brass body and UL/FM compliance make it a trusted choice for contractors and fire protection specialists.
