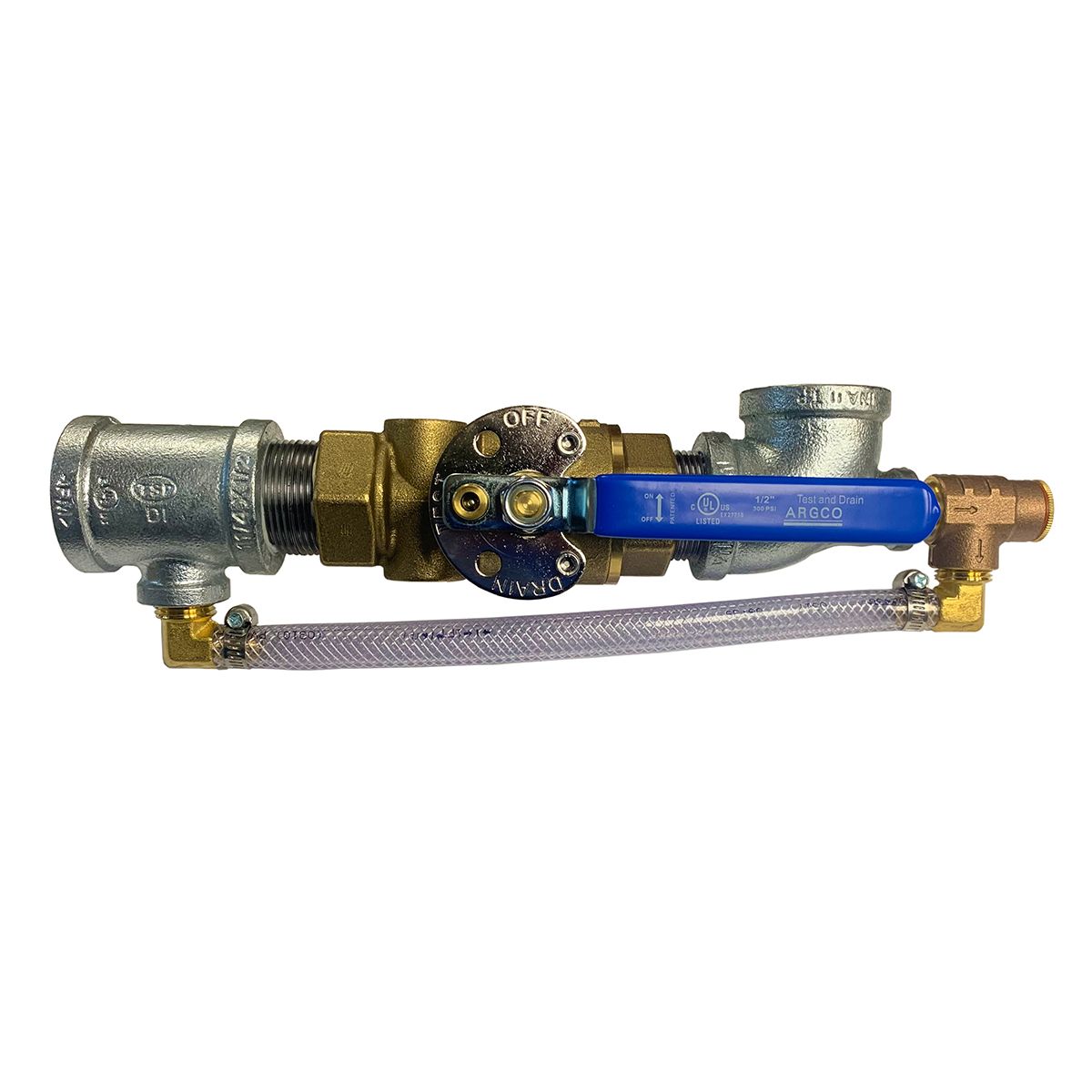

2" Test & Drain Valve with Pressure Relief (UL/FM)

Overview

The 2" Test & Drain Valve with integrated Pressure Relief is engineered for wet fire sprinkler systems in multi-story buildings that require pressure relief as outlined in NFPA 13/13R. This valve combines test and express drain capabilities into a single, compact unit with a tamper-resistant test orifice and dual sight glasses for easy system verification.

Key Features

• UL Listed and FM Approved for fire protection applications.
• Single-handle ball valve design for easy, reliable operation.
• Tamper-resistant test orifice and dual sight glasses for flow visibility.
• Rated to 300 PSI (20.7 bar).
• Built-in relief valve to prevent system overpressure caused by surges or temperature changes.
• Shipped with relief valve and bypass drain ports plugged for quick pressure testing.

Specifications

• Size: 2" (Female NPT, inlet/outlet)
• Pressure Rating: 300 PSI
• Material: Bronze body, forged brass cap, chrome-plated brass ball with PTFE seats, brass stem, steel lever handle with PVC cover
• Weight: ~11.3 lb

Compliance

• Meets NFPA 13 and NFPA 13R requirements for systems requiring pressure relief.
• UL Listed & FM Approved fire protection component.

Included Components

• Test & Drain valve body with operator handle
• Factory-installed pressure relief valve and drain tube assembly
• Plugged ports for expedited system pressure testing

Typical Applications

• Wet fire sprinkler risers in multi-story buildings
• Test and express drain service with integrated pressure relief
